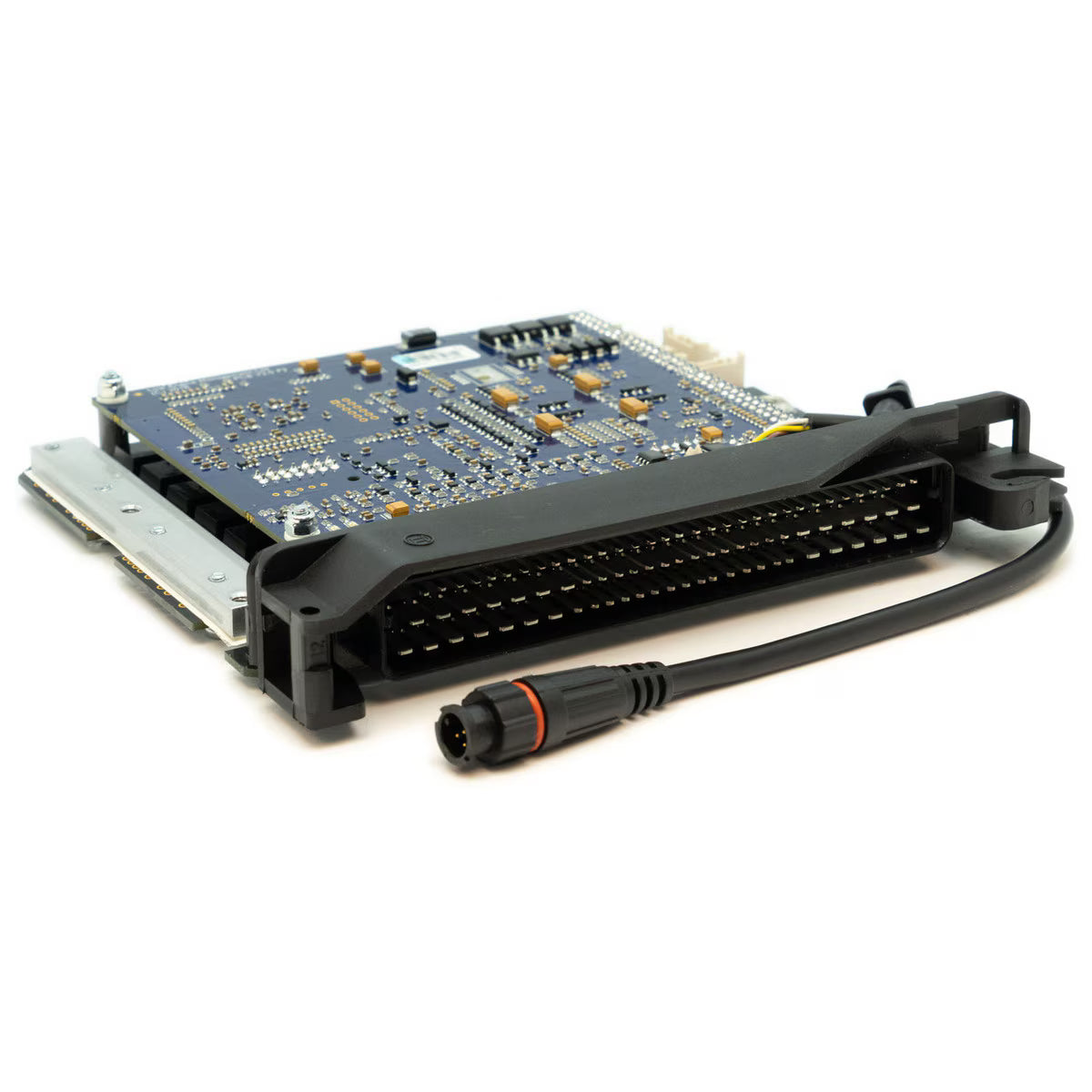

Link Engine Management - Plugin ECU G4X - BMW E36

Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

This ECU is designed for the E36 M50TUB25 engine.

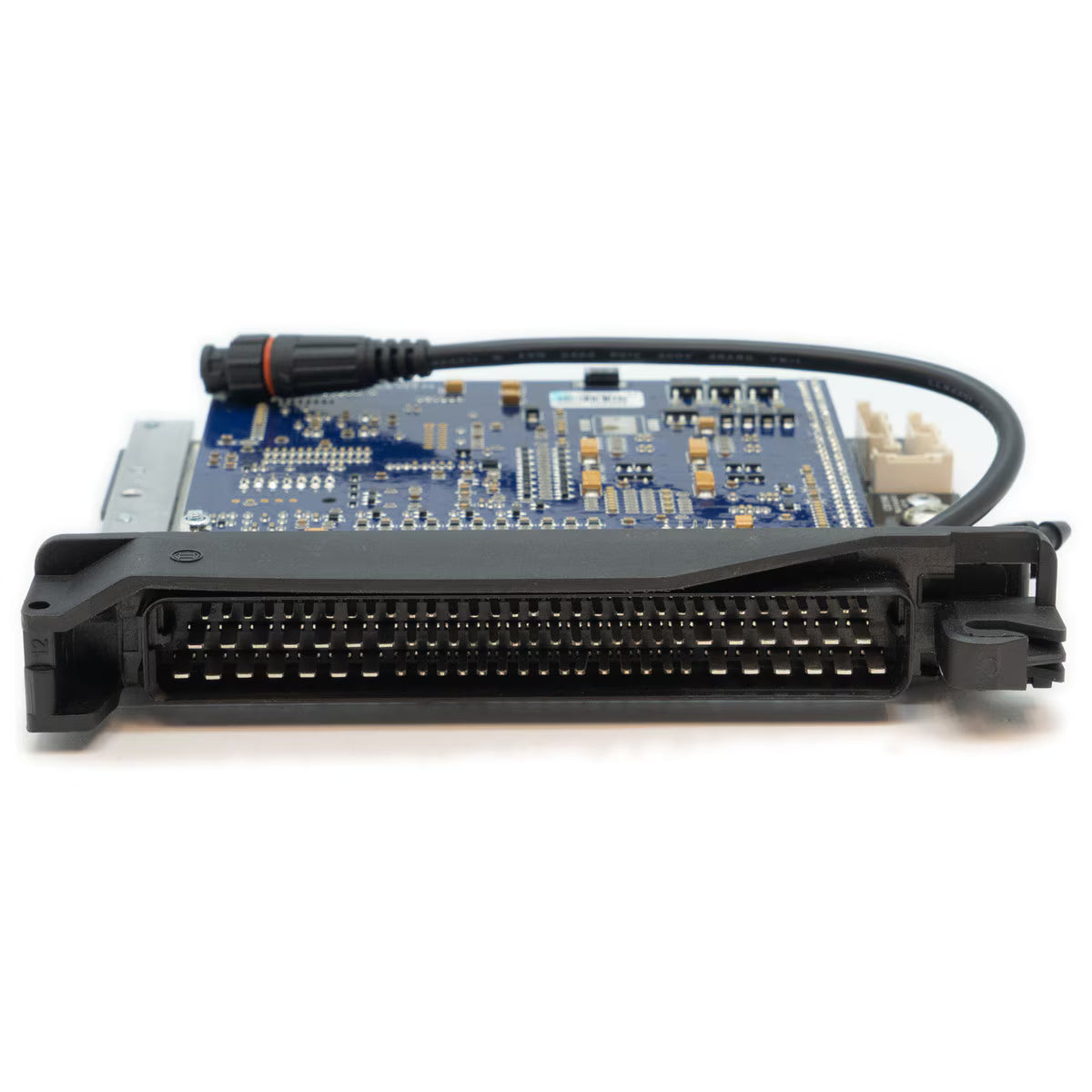

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU only works with the Engine Code M50TUB25 (Bosch ECU from factory).
• Works with manual & automatic transmissions.
• Built in 4 Bar MAP sensor or 7 Bar MAP sensor included.
• Most factory features are supported.
• Check the features tab for I/O expansion options .
• This ECU will need a modification before E-Throttle is usable.

Suitable applications:
M50TUB25 engine with the Bosch M3.3.1 ECU from factory

G4X PlugIn Key Features (where applicable):

• Up to 6D fuel and ignition mapping

• Precision closed loop cam control (four cam, independent control)

• Sequential fuel delivery

• Digital triggering, all OEM patterns

• OEM idle hardware supported

• 5D boost control with three switchable tables

• Motorsport features - antilag, launch, flat shift

• Continuous barometric correction (on board)

• CAN port

• QuickTune - automated fuel tuning

• Individual cylinder correction

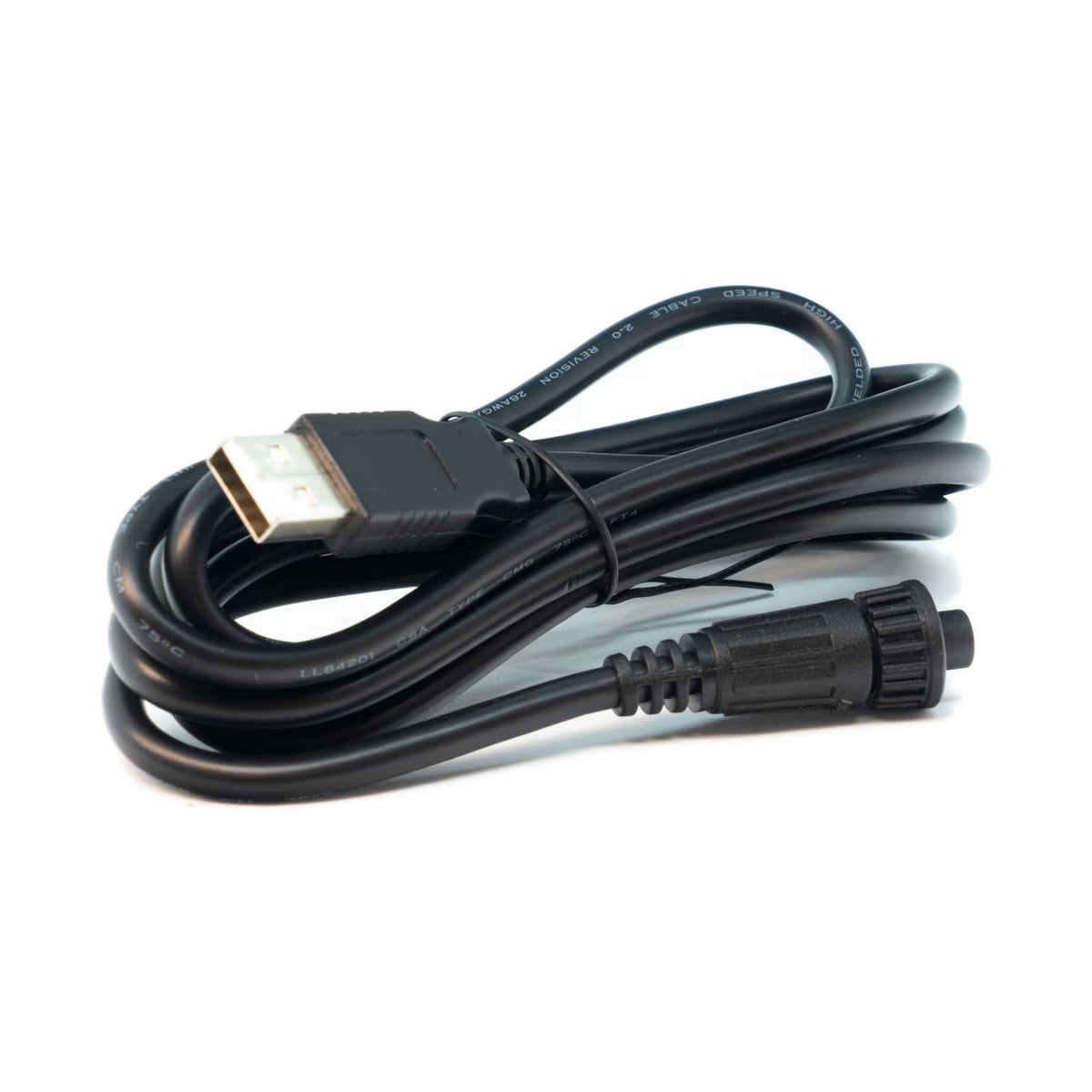

• USB tuning cable included

• Stats recording into on-board memory

• Gear compensations for spark, boost and fuel

• Real time selectable dual fuel, ignition and boost maps

• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical

• Boost control referenced to gear, speed or throttle position

• 512 mega bytes data logging memory

• Staged injection

• Knock with "windowing"




Expansion connector - The following expansion connector inputs/outputs are provided:

TEMP3                Temperature sensor input
TEMP4                Temperature sensor input
VOLT4                Analog 0-5V input
VOLT5                Analog 0-5V input
DI8                Digital Input
DI7                Digital Input
+5V                Low Current +5V Supply
GND                Sensor Ground Only
*Please see the PC Link Help file for details regarding installing the Expansion Cable.
